Image Display - Introduction

When Jim is first started and an image is loaded, the display layout is set to "ALL" by default. So, all slices in the data-set are shown in the display window. Some actions can only be applied to a single slice. Some actions can only be applied to the whole data-set. Some actions are applicable either to single slices or all slices.

To select a particular slice, double-click on the slice. The slice will then be outlined in white, and then most of the display actions will apply to that selected slice alone. Otherwise, display actions will apply to all slices, where applicable.

The appearance of a selected-slice in the display window.
To de-select a slice, double-click on the selected slice.

Note: When a slice is selected, as long as the display window has the input focus, you can alter the selected slice in the frame using the up/down/left/right arrows on the keyboard.

Note: If you press the shift key down as you double-click on a slice, single image layout will also be selected. If you double-click (with the shift key down) when a single slice is shown, the display will change to show all slices.

Note: you can change the number of slices shown when Jim is first started in the user Preferences.

Shrinking and Expanding the Controls Panel

By default, when Jim is started, all the controls for contrast adjustment, zoom, and paging through slices are shown in their fully-expanded form. However, clicking on the contract-expand button at the bottom right of the control panel will cause the controls to shrink to minimalist subset displayed in a much smaller area of the window.

Note: when starting Jim from the command line or from a script, you can cause the control panel to be minimised on startup using the option -m (or --minimise).

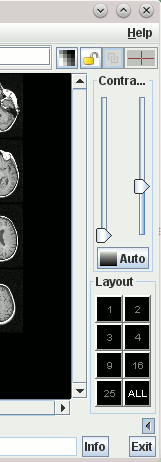

Click the button to shrink the control panel. The contrast adjustment sliders have lost their intensity labels, and you can no longer type in explicit maximum and minimum intensity values. The set of controls is reduced, but all controls for zoom and paging control are still available via the mouse and keyboard accelerators. The control panel will look like this:
Click the button to expand the control panel. The full set of controls is now visible again.
