Region of Interest (ROI) Audit Trail

Jim has been designed with clinical trials in mind, where it is necessary to provide a history of information - called the audit trail - that can be used by auditors to reconstruct the way in which statistics were derived.

Whenever ROIs are created, modified, or deleted, the history of these actions is written to disk when the ROIs are saved. The audit trail information is contained in a list of "History" items (one list for each ROI), built up according to the following rules:

You can view the ROI audit trail information from the View menu of the ROI Toolkit: view_audit_trail.

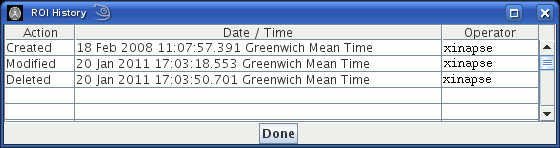

When you have an ROI selected, the audit trail viewer will then show in the audit trail information tabulated for that ROI:

audit_trail

Note: You can show deleted ROIs using the Show Deleted ROIs check-box in the ROI Toolkit View menu.

The form a history list is given in Backus-Naur Form (BNF) notation below.

<history-list> ::= <history-spec>|<history-list><history-spec>
<history-spec> ::= <action-spec><date-time-spec><user-spec>
<action-spec> ::= Created | Modified | Deleted
date-time-spec ::= "dd mmm yyyy hh:mm:ss.SSS zzzz"
user-spec ::= by Operator ID="operator-id-spec"
operator-id-spec ::= <string-spec>

<string-spec> is a string of ASCII text characters enclosed in double quotation marks (").

The operator-id-spec String is normally obtained from the logged-in user ID of the operator. If the computer system being used does not require a formal login procedure, then the operator will be prompted by Jim for a String identifier.

An example history item is:

Created "16 Dec 2013 12:24:41.678 GMT+00:00" by Operator ID="xinapse". The time is shown to the nearest millisecond, and the time zone is also shown.

Thus, a History item can record the creation, modification or deletion of an ROI, the date and time of the action, and the logged-in operator ID of the person who performed the action.

The full format of the ROI specification is given in the file formats section.
